UFIS310
USB Fingerprint Scanner
USB Fingerprint Scanner UFIS310 features full-sized
fingerprint image capture based on fingerprint contact with sensing area, capacitive sensor, fingerprint
auto detect. USB driver, SDK and Fingerprint Recognition library are included (Windows 7 and Windows 10 x64 USB driver is supported).
Specification
- Fujitsu capacitive fingerprint sensor
- Image size - 256x300 pixels
- Image resolution - 500dpi
- Power supply - 5V DC via USB connection
- USB 2.0 interface compatible, with a 2m USB cable
Weight and dimensions
- Weight - 100 grams
- Length - 80 mm
- Width - 60 mm
- Height - 14 mm
Request a price quote by email: sales@absgmbh.eu
Free Software
- UFIS Scanner Control SDK
- BioUPI Fingerprint Recognition SDK
- Microsoft Visual Studio sample project
- Demo application
- Driver supports Windows98/2000/XP/Vista/7/10 (x64 USB driver is included)

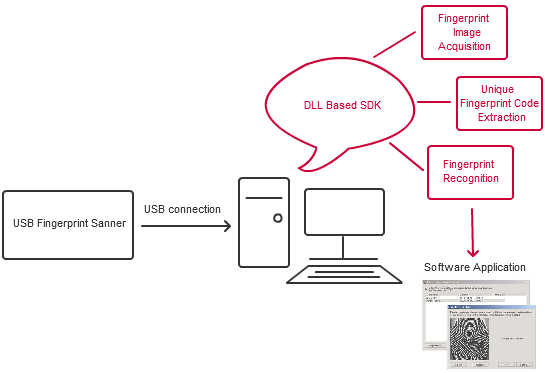

Application Diagram
