EREL118
Ethernet Input Output Module
Ethernet Input Output Module EREL118 is a low-cost solution for professional
control and monitoring tasks. This module features 8 input and 8 output terminals that can be controlled
via Ethernet network utilizing EREL Software Development Kit (SDK). It is designed for easy integration
in smart home automation, industrial machinery, metering and monitoring equipment.
Free EREL Ethernet module control SDK is included.
Specification
- Up to 8 optically isolated inputs
- Up to 8 dry contact relay outputs
- Input voltage levels - 5-24V DC
- Input current ~ 10mA
- Relay max switching power - 1250VA, 150W
- Relay max switching voltage - 250V AC, 150V DC
- Relay max switching current - 5A
- Power supply - external 9-35V DC
Weight and dimensions
- Weight - 100 grams
- Length - 85 mm
- Width - 90 mm
- Height - 58 mm
Request a price quote by email: sales@absgmbh.eu
Free Software
- EREL Ethernet module control SDK
- Microsoft Visual Studio sample project
- Demo application
- Utility software

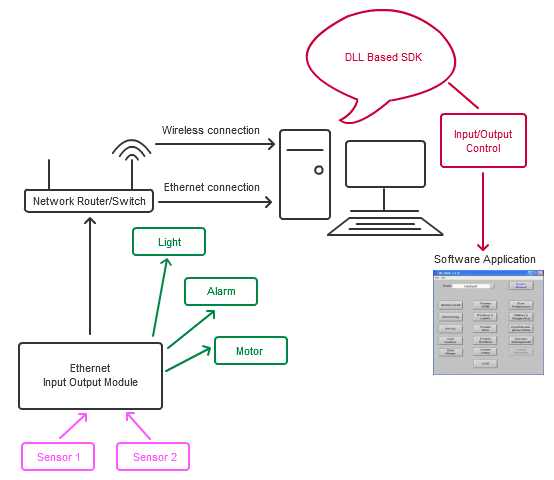

Application Diagram
