EFIS121 PoE 802.3af
Power over Ethernet Fingerprint Scanner
Ethernet Fingerprint Scanner EFIS121 PoE 802.3af features full-sized
fingerprint image capture based on fingerprint sweeping, thermal CMOS sensor, fingerprint
auto detect, sensing area auto clearing. The EFIS121 PoE scanner is IEEE 802.3af compatible device.
Free Scanner Control and Fingerprint Recognition SDK are included.
Specification
- Three access modes - TCP client, TCP server and WEB access
- Atmel thermal FingerChipTM sensor
- Image size - 280x440 pixels
- Image resolution - 508dpi
- On board 10/100 Mbps Ethernet port
- IEEE 802.3af compatible
- DHCP (optional)
- Power supply - via PoE switch or using passive PoE adapter with external 48VDC
- Scanner’s power is supplied over Ethernet cable
Weight and dimensions
- Weight - 100 grams
- Length - 80 mm
- Width - 60 mm
- Height - 15 mm
Request a price quote by email: sales@absgmbh.eu
Free Software
- EFIS Scanner Control SDK
- BioUPI Fingerprint Recognition SDK
- Microsoft Visual Studio sample project
- Demo application
- Utility software

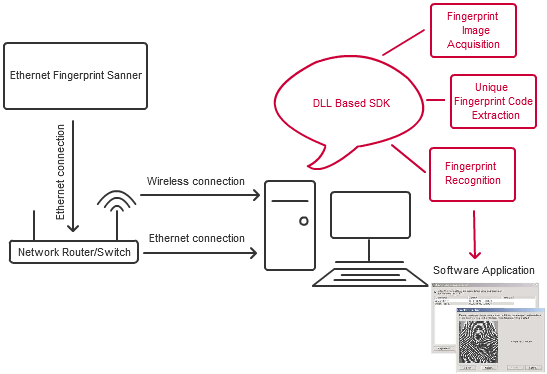

Application Diagram
