IFIS131
Intelligent Fingerprint Scanner
Intelligent Fingerprint Scanner IFIS131 features full-sized
fingerprint image capture based on fingerprint sweeping, thermal CMOS sensor, fingerprint
auto detect, sensing area auto clearing. It has 10/100 Mbps Ethernet interface. Reader's power is supplied over Ethernet cable.
Stores up to 90 fingerprint templates and performs fingerprint recognition right on the board.
Free Scanner Control and Fingerprint Recognition SDK are included.
Specification
- E1-16XSR Hyperstone RISC/DSP processor
- Atmel thermal FingerChipTM sensor
- Image size - 280x440 pixels
- Image resolution - 508dpi
- On board 10/100 Mbps Ethernet port
- Power supply - external 9-35V DC
- Reader's power is supplied over Ethernet cable
- Supports direct communication with EREL114 device
Weight and dimensions
- Weight - 100 grams
- Length - 100 mm
- Width - 77 mm
- Height - 35 mm
Request a price quote by email: sales@absgmbh.eu
Free Software
- EFIS Scanner Control SDK
- BioUPI Fingerprint Recognition SDK
- Microsoft Visual Studio sample project
- Demo application
- Utility software

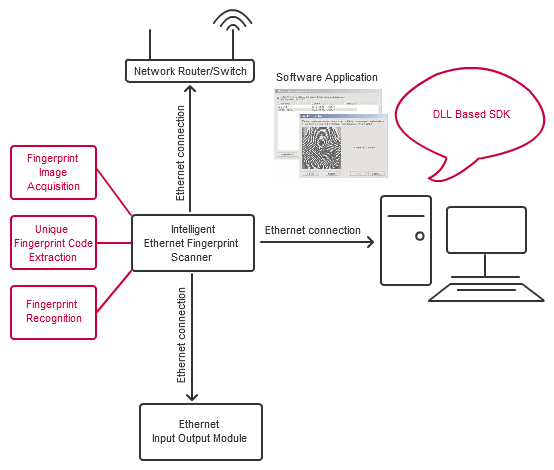

Application Diagram
